Machine Details


Forma Makina
WIDTH
1075 mm


Forma Makina
LENGTH
9500 mm


Forma Makina
HEIGHT
1865 mm


Forma Makina
WEIGHT
1950 kg


Forma Makina
CONSUMPTION (kWh)
15 kW/h



Products / Horizontal Packaging Machines / YA–300


YA–300

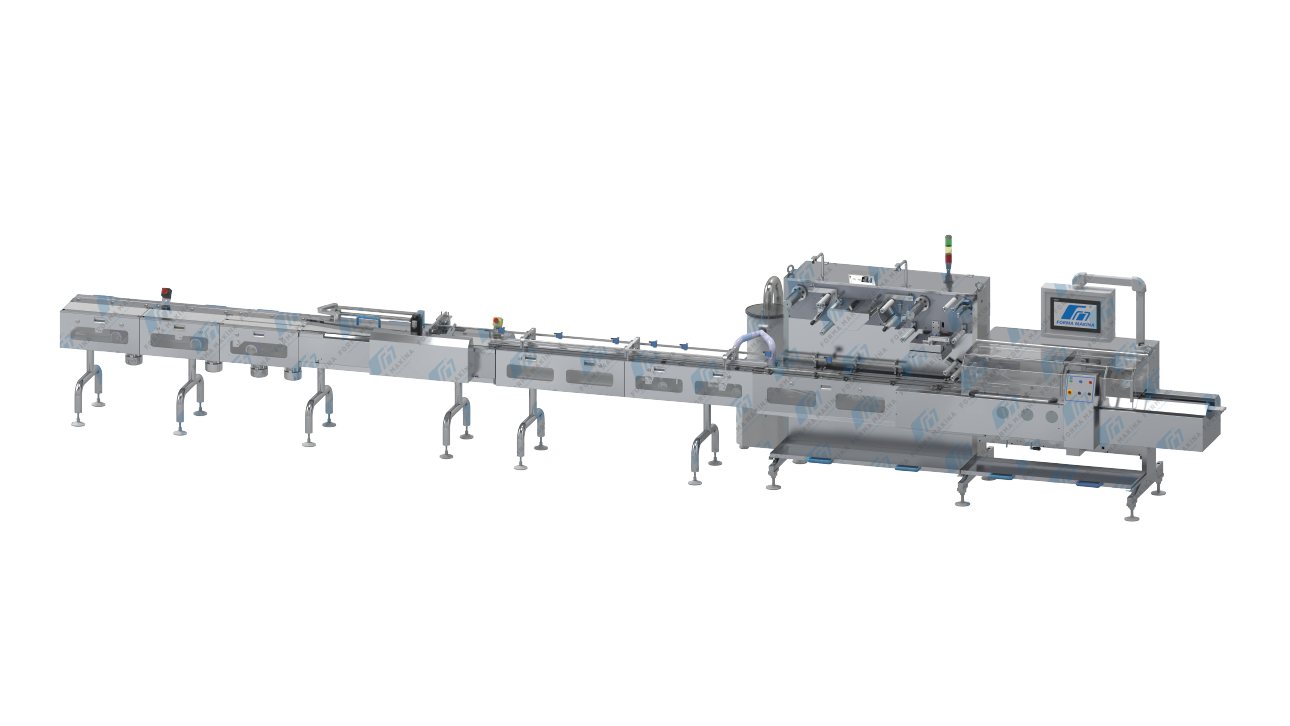

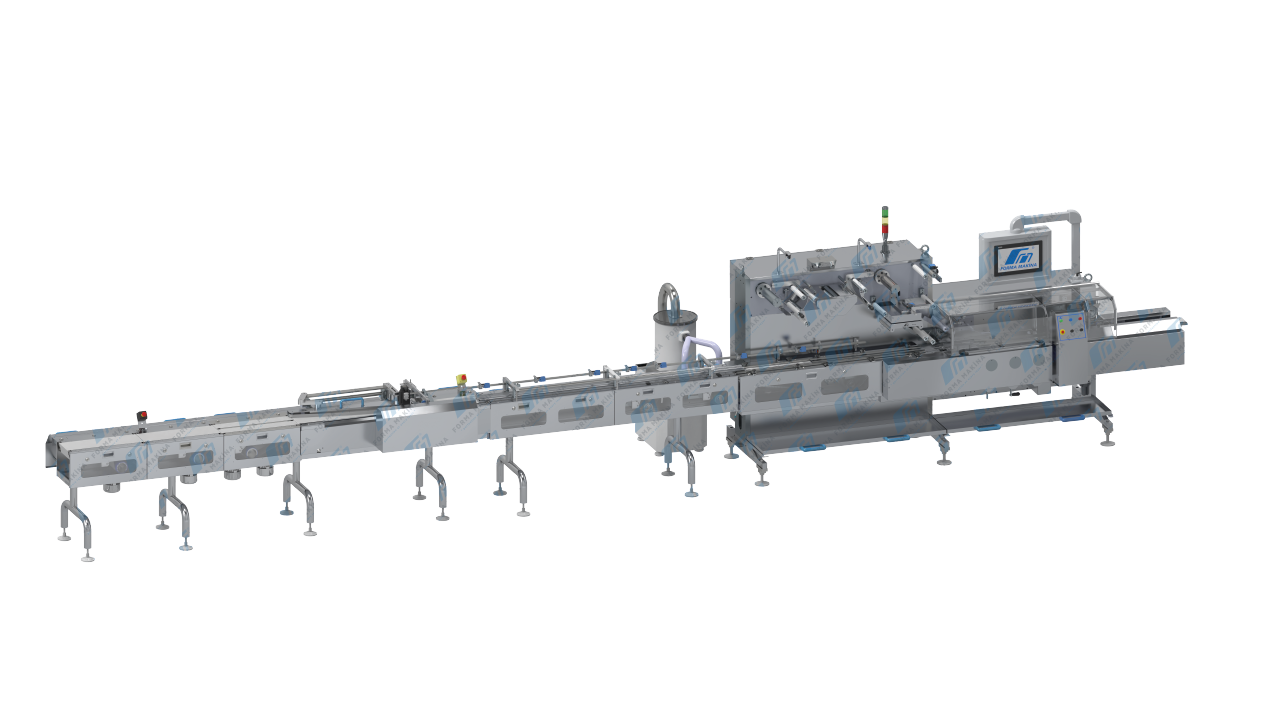

HORIZONTAL PACKAGING MACHINE – YA300

High technology packing solution for high-capacity production

The YA-300 horizontal packaging machine is produced with high technology of Forma Makine for food companies aiming for high-capacity production.

The YA-300 operates semi-autonomously; it provides maximum performance at high speeds while requiring the least amount of operator input. The autonomous structure of the system reduces the amount of time needed to change the pusher, bobbin, and mold system during product changes. Thanks to its design in accordance with Industry 4.0, it allows you to control data such as capacity, energy, efficiency, and maintenance from a single point.

  • The use of planetary reducer and servo motors in the main axes
  • Sensitive bobbin group setting
  • Servo brake system
  • Proportion-controlled paper tensile adjustment
  • Automatic bobbin transfer group
  • Paper edge control system against packaging errors
  • Capability to use any packaging material convenient for cold sealing
  • Compatibility with all printer devices
  • Maximum capacity of 1000 packages per minute
  • Less paper waste and more tightly spaced packing
  • Automatic change of packing roll

OPTIONS

Inline with metal detector: It is used to prevent presence of metal in products.

Double-feed inline: It is used to make pillow type packaging on top of each other.

Non-contact inline: It is preferred for packaging products that stick together or soft and asymmetrical products.
